ASI

Aramo Smart navigation Integration
Skin & Hair Analysis System

Simple & Great Performance with very handy design

User friendly operation will attract you.

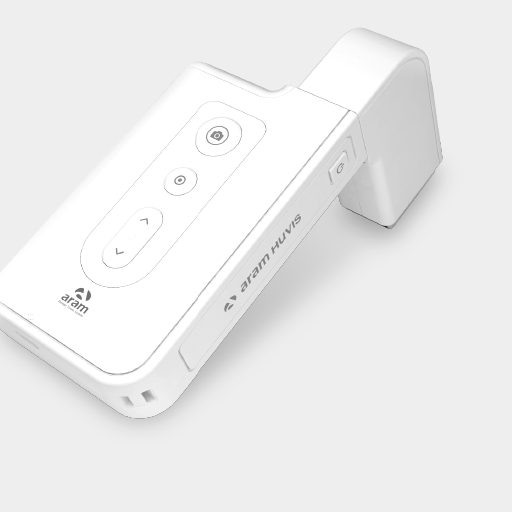

asi
asi-feature-01

Wi-Fi Video Streaming Solution

Automatic Remote Control Diagnosis

asi-feature-02

VGA / 2Mega
Still Image Capture

asi-feature-03

Multi OS Support

Android / iOS / Windows / Mac OS

asi-feature-04

Small & Compact

  • ASI 100

    Moisture / Sebum / Pore / Melanin
    Acne / Wrinkle / Sensitivity

  • ASI 202

    Hair Loss Status / Scalp Status / Hair Density
    Keratin of Scalp / Exposure of Scalp’s Vessel
    Hair Thickness / Hair Pore Status

  • ASI 203

    Hair Loss Status / Hair Thickness
    Hair Pore Status / Cuticle Status

ASI 100

For Skin Analysis

apm-skin

Moisture / Sebum / Pore / Melanin / Acne / Wrinkle / Sensitivity

Download - Solutionist

ASI 202

For Hair Analysis

hair2-analysis

Hair Loss Status / Scalp Status / Hair Density / Keratin of Scalp

Exposure of Scalp’s Vessel / Hair Thickness / Hair Pore Status

Download - Solutionist

ASI 203

For Hair Analysis

hair3-analysis

Hair Loss Status / Hair Thickness / Hair Pore Status / Cuticle Status

Download - Solutionist

Rotate it, make simple and comfortable.

Turning head of lens provides the machine simple design and easy usage.
If you always used the fixed location lens, then try this.

asi2

Wi-Fi Video Streaming Solution

VGA (640×480) | 30 FPS Max, 2M (1600×1200) | 15 FPS Max

wifi-asi-skin

VGA / 2Mega Still Image Capture

Start | Mode Change | Image Capture | Analysis | Result

wifi-asi-hair

Multi OS Support

Android | iOS | Windows | Mac OS

multi-os-asi2

S/W: Solutionist

desktop

Desktop

Windows PC, Mac OS

tablet

Tablet

Android Tablet, iPad, Windows Tablet

phone

Smartphone

Android Smartphone, iPhone

Specification

ITEMASI-100ASI-202ASI-203
Wi-Fi TypeWireless LAN IEEE 802.11 b/g/n
OS SupportAndroid, iOS, Windows, Mac OS
Image Sensor1/4 inch Color CMOS UXGA (2 Mega Pixel)
Sensor PixelEffective pixel : 1,624 X 1,212 Pixel
Image Capture SizeWi-Fi Video Streaming
VGA (640 X 480) | 2 M (1,600 X1,200)
Image Frame RateVGA (640X480) - 30Frame Max
2M (1,600 X1,200) - 15Frame Max
LEDDip LED X8 & UV-Chip LED X8
(NICHIA / Japan)
Dip LED X8
(NICHIA / Japan)
Dip LED X8
(NICHIA / Japan)
Camera Button FunctionStart, Mode Change, Image Capture, Analysis, Result
High Magnification Lens1. X30-NL
2. X30-PL
3. X30-UV
4. Moisture Sensor
1. X60-NL
2. X60-PL
3.X200-NL(Crop)
4.X200-PL(Crop)
1. X200-NL
2. X600-NL (Crop)
Measurement Mode1. Moisture
2. Sebum (U/T Zone)
3. Pore
4. Melanin
5. Acne (UV)
6. Wrinkle
7. Hemoglobin
1.Hair Loss Status
2. Scalp Status
3. Hair Density
4. Keratin of Scalp
5. Exposure of Scalp’s Vessel
6. Hair Thickness
7. Hair Pore Status
1. Hair Loss Status
2. Hair Thickness
3. Hair Pore Status
4. Cuticle Status
FocusingFixed Type
BatteryType: Li-ION / Typical Capacity: 1,150mAh
Normal Voltage: 3.7V
DC IN Adaptor5V DC / 2A
Out Dimension60(W)X118(H)X18(D)mm (ASI-100 / Camera Only )
WeightAbout 120g (ASI-100 / Camera Only / with Battery)
CradleStand
Operating Temperature-10 ~ 50°C
Storage Temperature-30 ~ 50°C
Operating Humidity5 ~ 85%

End to end

From hardware to software, all the developments were made by Aram HUVIS.
So everything is under control.
It means hardware and software modification is available.
